Exchange 2016 Installation using the setup wizard

After ensuring all the pre-requisites for Exchange 2016 installation (as described in Part 1 of this series), it is time to install Exchange Server 2016. As said earlier, we will use Exchange 2016 Setup Wizard for Exchange 2016 installation.

Instant Solution - Kernel Migrator for Exchange

Exchange/Office 365 migrations are quite easy with professional tools like Kernel Migrator for Exchange. This tool helps to manage mailbox and public folder migrations involving different Exchange versions and deployment types. Also, this tool helps with all tasks starting from the pre-migration analysis to the preparation of reports after the migration.

Server Roles in Exchange 2016

In Exchange 2016, the Mailbox Server role performs all the core Exchange activities. It performs all the functions of Mailbox Server Role, Client Access Server Role, Hub Transport Server Role, and Unified Messaging Server Role of the previous versions of Exchange. So, it hosts mailboxes and public folders and generates OABs (Offline Address Books). Also, it is responsible for Unified Messaging and Outlook on the Web services.

Note: The only other server role in Exchange 2016 is Edge Transport Server role.

Install Exchange 2016 Mailbox Server role using Exchange 2016 Setup Wizard

You should Exchange first on internet facing AD sites as the Autodiscover requests come to this site from internet. After that you can install Exchange on internal sites. Follow the steps for the installation of Exchange 2016 mailbox Server role:

  1. Download Exchange 2016 from https://www.microsoft.com/en-us/download/details.aspx?id=57827
    Note: You can get the information about the latest updates to Exchange 2016 from https://docs.microsoft.com/en-us/Exchange/new-features/updates?view=exchserver-2016
  2. Go to the setup location and double-click the Setup.exe
    Note: If required, select Run as administrator from the right-click menu.

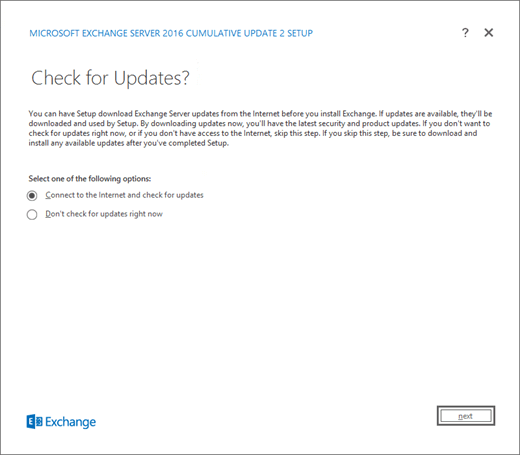

  3. In the Exchange 2016 Setup wizard, check the required update option:
    • Connect to the Internet and check for updates – this options searches and finds the latest updates
    • Don’t check for updates right now – if you select this option, you can install the updates later Click Next.

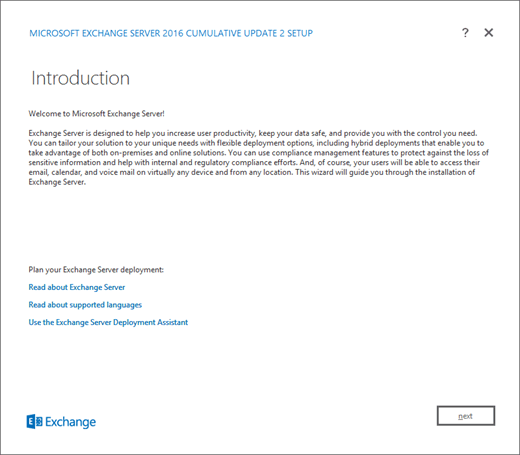

  4. On the Introduction page, click Next

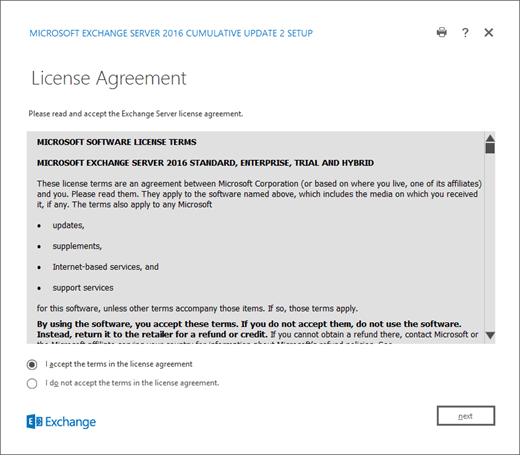

  5. Now select the option I accept the terms in the license agreement, and click Next, on the License Agreement page

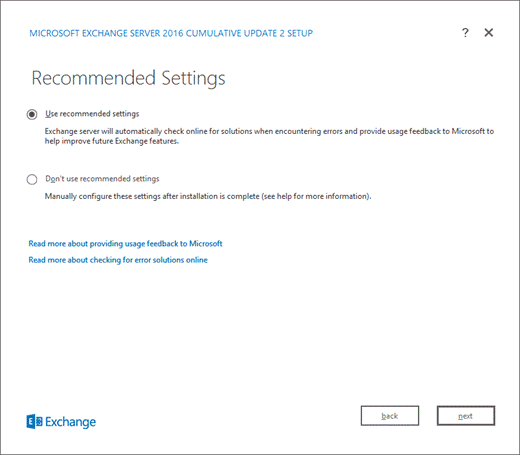

  6. Now choose the required settings option:
    • Use recommended settings – It is recommended to select this option
    • Don’t use recommended settings – After you choose this option, you can switch to the recommended settings later also (after installation) Click Next.

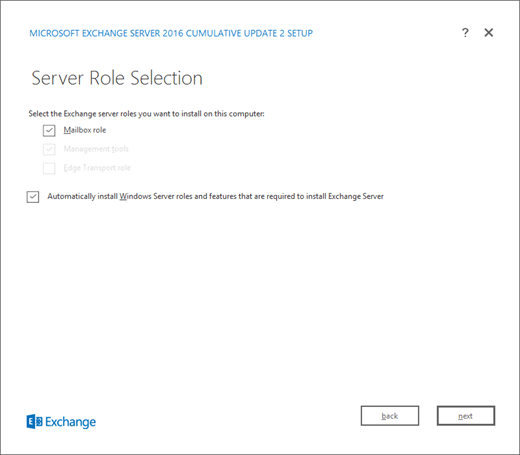

  7. Now select Mailbox role (with the selection of Mailbox Server role, Management tools are automatically installed). Click Next.

    Note: As you have already installed all the prerequisites, you can uncheck the option Automatically install Windows Server roles and features that are required to install Exchange. If you choose this option, you need to restart the computer after the installation.
  8. Browse for the location for Exchange e2016 installation (the default location is C:\Program Files\Microsoft\Exchange Server\V15). Click Next
    Note: It is important that enough disk space is available in the installation location.

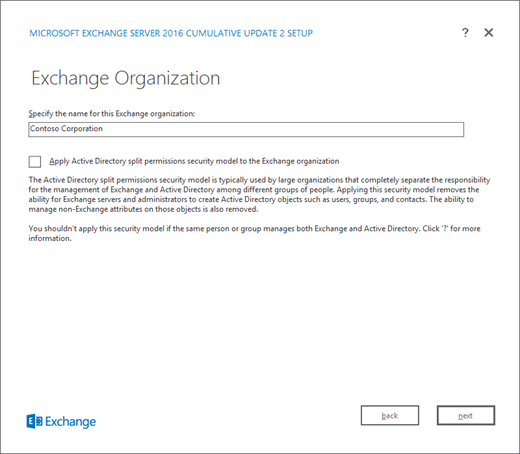

  9. Now give a name to the Exchange organization (default value is First Organization). Click Next

    Note: For the name, max 64 characters – a to z, A to Z, 0 to 9, space, and hyphen or dash (-), are allowed

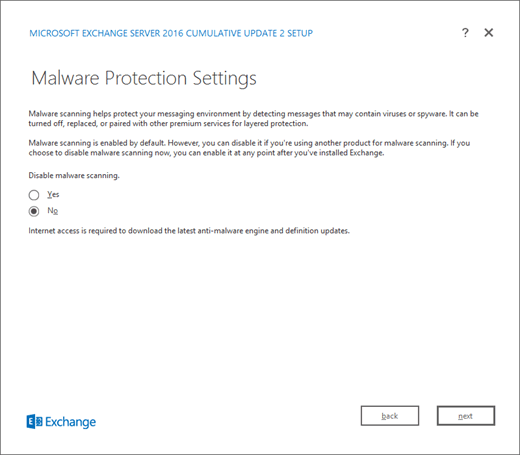

  10. Choose the required malware scanning option. By default, No is selected (malware scanning is enabled). Click Next.

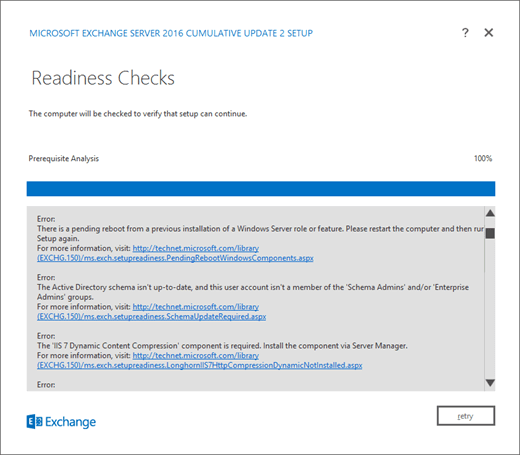

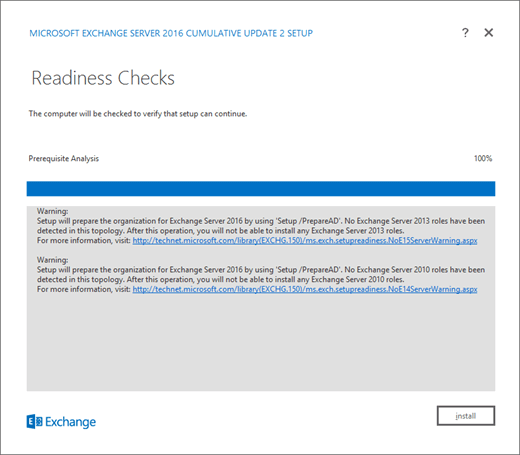

  11. Now the Exchange installation setup wizard displays all the errors after verifying the prerequisites available on the environment. Now if no errors, present, you can click Install.

    Note: If errors are present, you need to click Retry (the only option available at that point).

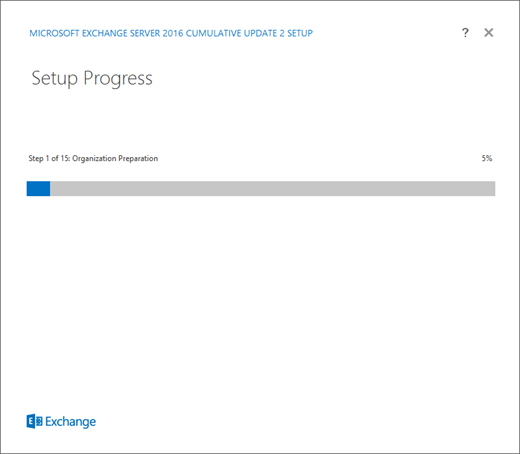

  12. Wait till the installation is complete.
  13. Finally, click Finish.

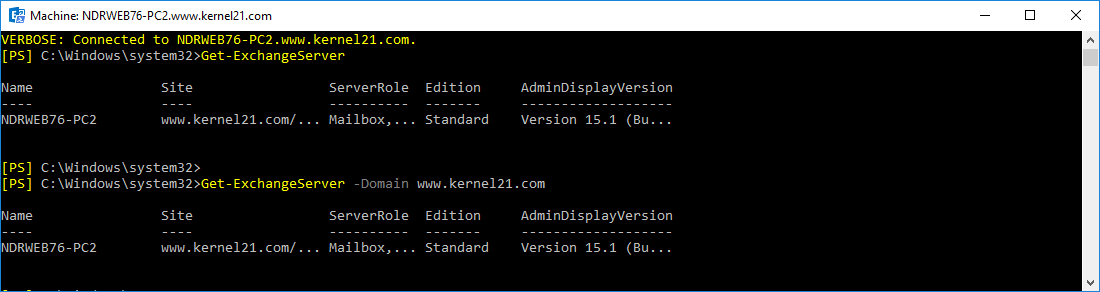

  14. To verify the Exchange 2016 installation, run the following cmdlet in the Exchange Management Shell: Get-ExchangeServer -Domain It returns a list of all Exchange 2016 roles installed on the server.

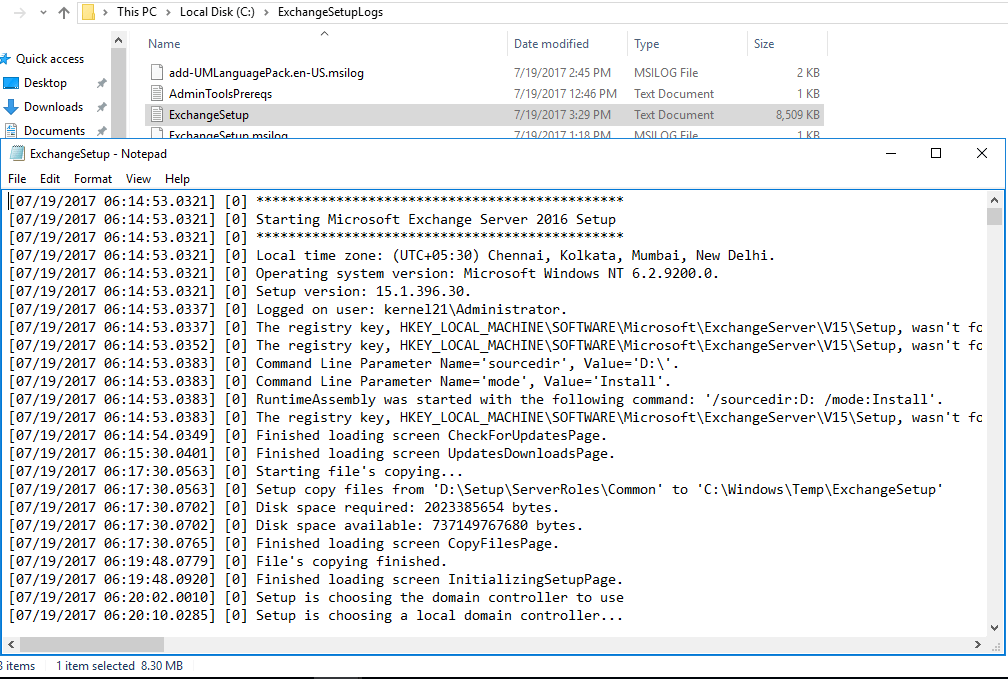

    Note: Also, you can review set up log file (Windows Server 2012/2012R2)

After the successful exchange 2016 installation, you can proceed to create the first Exchange 2016 mailbox and assign it with necessary permissions for Exchange 2016 migration (as in Part 3 of this series).

Summary

Exchange 2016 Setup wizard helps even non-technical users to install Exchange 2016 with much ease.
